Multi-Stage Amplifiers (AMP)

Overview

AMP is originally from CktGNN: Circuit Graph Neural Network for Electronic Design Automation.

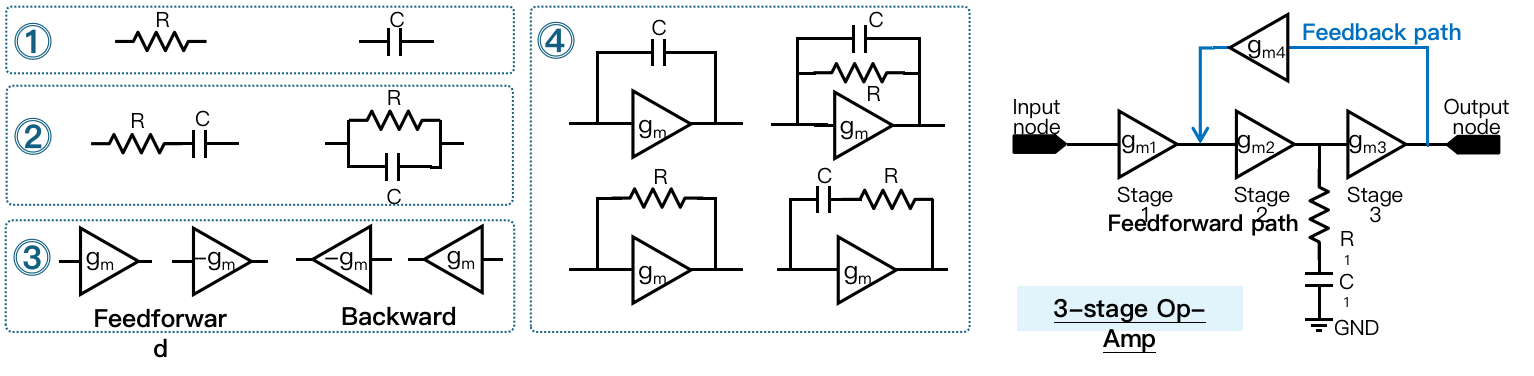

This dataset focuses on predicting circuit specifications (e.g., DC gain, bandwidth (BW), phase margin (PM)) of 2/3-stage operational amplifiers (Op-Amps), which are simulated by the circuit simulator Cadence Spectre. A 2/3-stage Op-Amp consists of (1) two/three single-stage Op-Amps on the main feedforwoard path and (2) several feedback paths, with one example shown in the right part of Figure.

To make multi-stage Op-Amps more stable, feedforward and feedback paths are used to achieve different compensation schemes, each of which is implemented with a sub-circuit, e.g., single-stage Op-Amps, resistors, and capacitors. Due to the different topologies of single-stage Op-Amps and various compensation schemes, each sub-circuit is built as a subgraph.

There are 24 potential sub-circuits in the considered 2/3-stage Op-Amps:

  • Single R or C ① in Figure, 2 types.

  • R and C connected in parallel or serial ② in Figure, 2 types.

  • A single-stage Op-Amp (gm) with different polarities (positive, +gm, or negative, -gm) and directions (feedforward or feedback) (③ in Figure, 4 types).

  • A single-stage Op-Amp (gm) with R or C connected in parallel or serial (16 types). Note that we use the single-stage Op-Amp with feedforward direction and positive polarities as an example for ④ in Figure.

../_images/analog.png

Interface

Runner

class AMPRunner():
    def __init__(self, config):
      # init takes a config
    def train_ray(self, tune_parameter_config):
      # function to implement training when tuning with ray
    def train(self):
      # function to implement training when evaluation
    def train_one_epoch(self, data_loader, mode, epoch_idx):
      # function that do back propogation for one epoch
    def test(self, load_statedict = True, test_num_idx = 0):
      # function for testing
    def raytune(self, tune_config, num_samples, num_cpu, num_gpu_per_trial):
      # main function to take the hyper-parameter search space in RAY

Details are in ./runner/AMP_runner.py.

DataProcessor

class AMPDataProcessor(InMemoryDataset):
    def __init__(self, config, mode):
      # init takes a config, mode takes from `tune' for tuning, `get_result' for evaluation
    def process(self):
      # key functions to implement AMP data processing
    def read_csv_graph_raw(self, raw_dir, check_repeat_edge):
      # key function to process raw data into PyG data

Details are in ./data_processor/AMP_data_processor.py.
